A Pilot study for Usefulness of Customized Wrist Splint By Thermoforming Manufacturing process Using 3D printing: Focusing on Comparative Study with 3D scanning Manufacturing process

Wonseuk Choi, Wanho Jang, Jongbae Kim, Jeong-Hyun kim,  Subin Hwang

Yonsei University, Dept. of Occupational Therapy, Wonju, South Korea

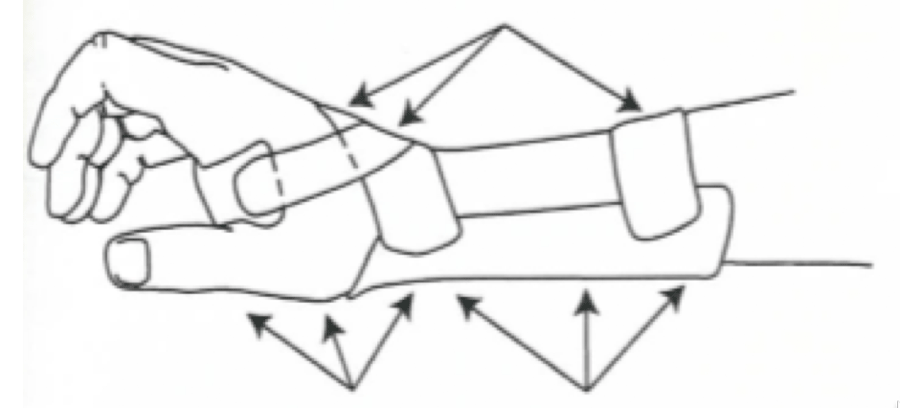

Figure 1: Principle of splint
The occupational therapist can manufacture of the upper limb splint according to the shape of the body, taking into account the client's performance patterns and predictable risks, and can help them adjust to their activities of daily living by training them with management methods and precautions. Manufacture of the upper limb splint is an activity that uses special materials of plastic to make it suitable for individuals through manufacturing, including design plan.

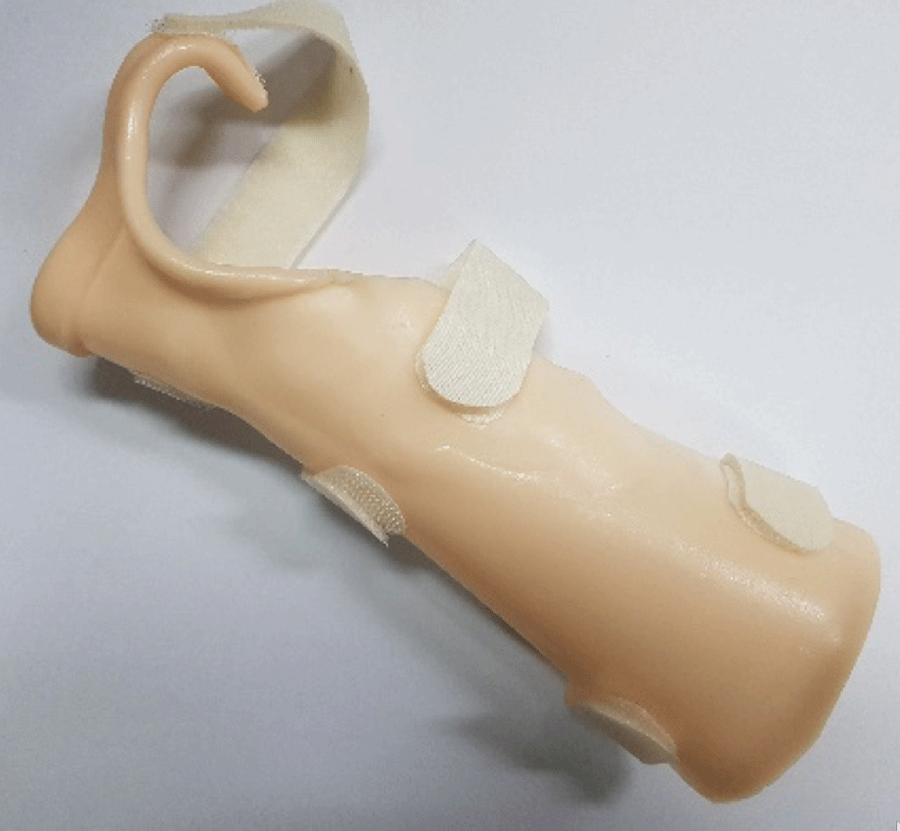

Figure 2: Cock-up splint
The splint is a device for preventing and correcting physical deformities and improving their movements. Sometimes it is necessary for rehabilitation for a while, but it is essential for occupational aspect and community activities, and it is a necessary factor for the daily life of people with disabilities. the splint uses the principle of three-point pressure, the principle of compression and the principle of shearing force to align and support the body and to protect the body part. Depending on the area of body, it can be classified as upper limb, lower limb, or spine. Especially, it is mainly used for upper limb such as hands and arms.

Figure 3: Upper limb measurement
A cock-up splint is a wrist resting and extension splint that is associated with the wrist pain syndrome. This splint fixes from the bottom of the forearm to the palm of the hand. The wrist is keep in the extended position to maintain the functional posture of the hand, but the resin joint can move relatively freely. Typical diagnoses requiring a cock-up splint are tendonitis, sprained wrists, nerve paralysis, simple wrist fractures, and other diagnoses. Modern people use computers and smart phones for a long time, and the number of occupation groups related to Video Display Terminal is increasing every year, so the frequency of musculoskeletal diseases on the wrist is increasing, and as a result, the cock-up splint is increasingly prescribed.

Figure 4: Drawing a Cock-up splint design
However, the cock-up splint is heavy and air circulation is not possible, so it is difficult to wear for a long time due to skin hygiene problems and itching due to sweating, which causes poor compliance of the splint. In addition, since the plastic thermoplastic board is cut by scissors in clinic, there is a lot of power and a safety risk. And expensive materials are wasted, and the cut edge is not clean.

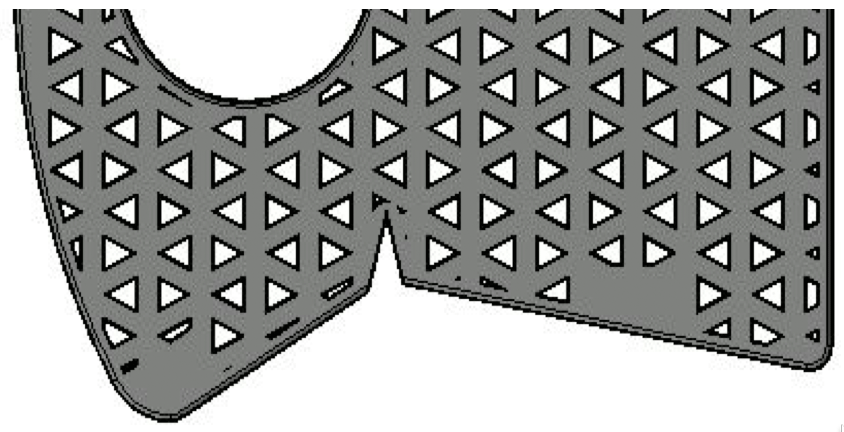

Figure 5: 3D Modeling
In order to overcome these problems, researches has emerged on the manufacturing of splint using 3D printing, which is widely recognized as the latest manufacturing technology. 3D printing is a technology that manufacture of layer by layer processing information from 3D scanning or 3D modeling, and it is now highly interesting and studied in a various fields. 3D printing technology shows a system specialized in small quantity production system of various types and contributes to the coming of customized manufacturing industry reflecting personal tendency. Therefore, 3D printing possible to make the splint as an optimized product according to the body, and occupational therapists will contribute to the manufacturing of splint by using 3D printing technology because they understand the anatomical body structure and movement function of the patient.

Figure 6: 3D Printing
As a result of reviewing the application of 3D printing technology to the upper limb splint, using a 3D scanner to shoot the upper limb and 3D modeling the photographed data and proceed 3D printing. To introduce simplify the 3D scanning manufacture method based on 3D printing.

Figure 7: Finishing
However, there is a problem to be solved in order to manufacture an splint by the 3D scanning manufacture method in actual clinic. First, 3D scanning requires maintaining a static posture for a certain period of time, which is difficult due to pain, tremors, stiffness, and relaxation. Second, the shape obtained by 3D scanning has an error rate, and since an error rate is higher for an inexpensive scanner, an expensive scanner is required to manufacture a customized product. Third, the splint manufactured using 3D scanning is difficult to modify. Therefore, if you do not fit your body with the error rate according to the equipment performance, you have to go through a troublesome process and waste time and materials.

Figure 8: Thermoforming
So I have devised a new process that does not use 3D scanning based on 3D printing, which replaces some of the splint manufacturing processes in the clinical field, and complementary relationships. The process is as follows.

First, fix the upper limb on the A3 paper and draw a line of upper limb using a ball-point pen.

Figure 9: Attach the strap
Second, the cock-up splint design drawing on the outline of the upper limb drawn on A3 paper, and 2D scanning for save as a JPG file.

Third, the JPG file is loaded into the cad software and 3D modeling is performed by drawing lines along the cock-up splint design, and the pattern for weight reduction and air circulation.

Fourth, transmit the saved 3D modeling file to 3D printer and 3D printing.

Figure 10: User education
Fifthly, the output cock-up splint is surface-processed using sand paper [Fig. 7].

Sixth, put the cock-up splint in a water temperature control tank, soften it, wipe the water, check the temperature, and thermoforming on the upper limb.

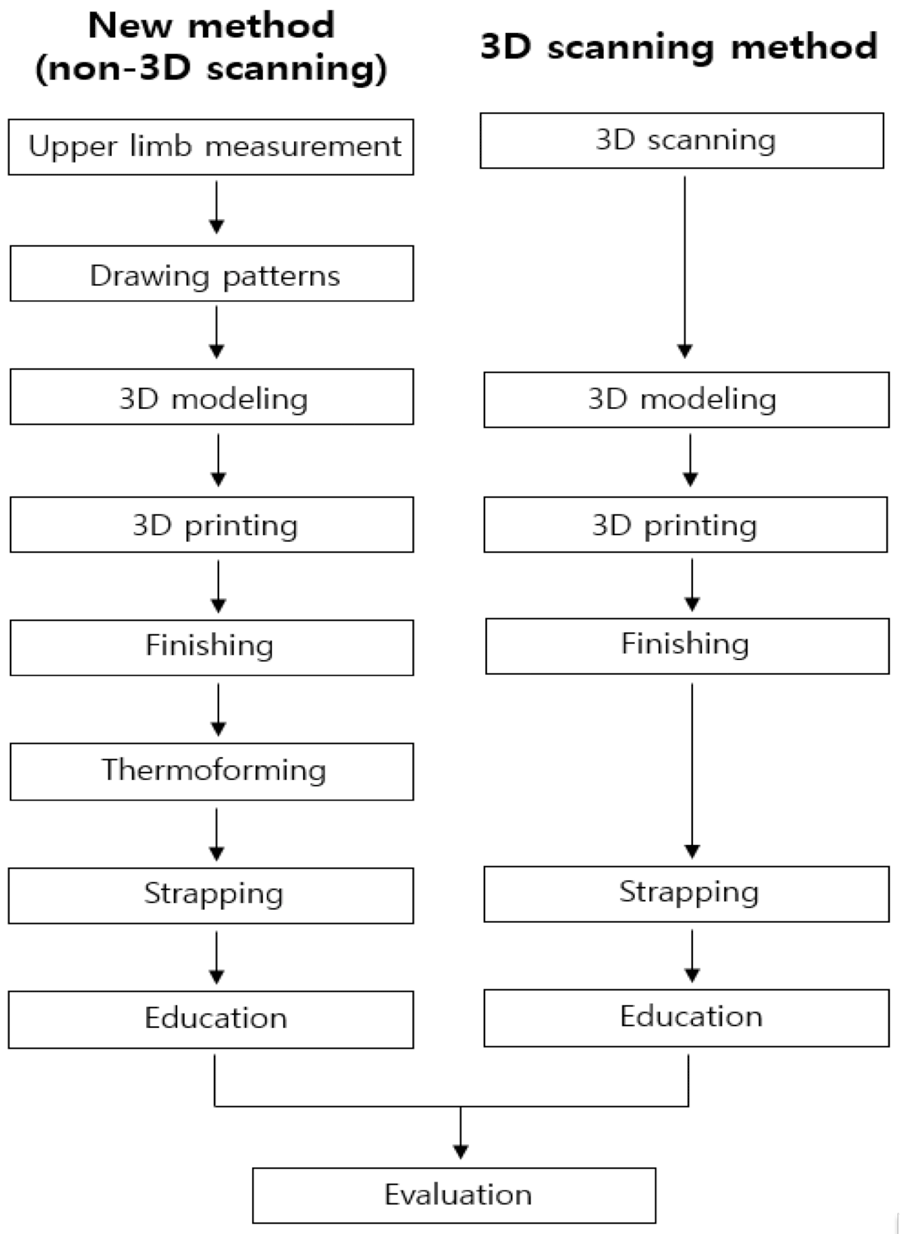

Figure 11: Research procedure
Seventh, attach the strap.

Eighth, educate the subjects and their caregivers about precautions and management methods, and provide them with written instructions.

Therefore, in this study manufacturing of cock-up splint by thermoforming method and 3D scanning method based on 3D printing technology applied to the actual wrist pain patient. And compared to satisfaction and effectiveness.


Research procedure

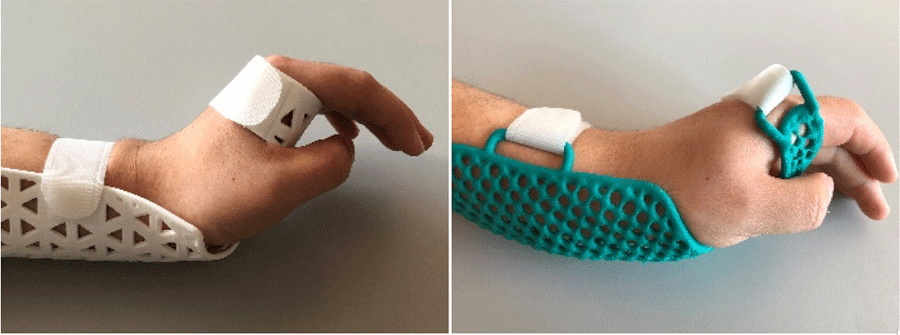

Figure 12: Subject A
(Left: Wrist splint by Thermoforming, Right: Wrist splint by 3D scanning)
In this study, two occupational therapists who had experience manufactured of splint, and 3D scanner, 3D printer, and 3D modeling were contacted. the two subjects who complained of wrist pain were manufactured of cock-up splint in different manufacture method process. Both processes use 3D printing to create a cock-up splint, but there is a difference in the way 3D modeling data is obtained. Therefore, we divided the method into two ways of obtaining 3D data by using 3D scanning and 3D modeling by upper limb measurement without 3D scanner. The subsequent finishing, attach the strap, user education continues in the same way. We will have compared the total manufactured time by measuring the time step by step during the process and compare the product satisfaction and service satisfaction using K-QUEST 2.0(Quebec User Evaluation of Satisfaction Assistive Technology 2.0) to check which process is more effective. The research procedure is summarized as Figure 10.

Table 1: Information of Subject
  Subject A Subject B
DeQuervain Syndrome
Capral tunnel Syndrome
Damaged side



Analysis method

In this study, the average of the product satisfaction, service satisfaction, and manufactured time were calculated to compare the two ways manufacturing methods based on 3D printing. no statistical techniques were used Because of the small number of subjects.


Completed Cock-up splint

Subject A was worn on the right and Subject B was worn on the left.

Production satisfaction

Figure 13: Subject B
(Left: Wrist splint by Thermoforming,Right: Wrist splint by 3D scanning)
The results of the comparison of the product satisfaction in wrist splint by two ways manufactureing process methods. There was more than One-point difference in the standard at safety, durability, comfort, and effectiveness. Overall, the thermoforming process was more satisfying than the 3D scanning process.

Service satisfaction

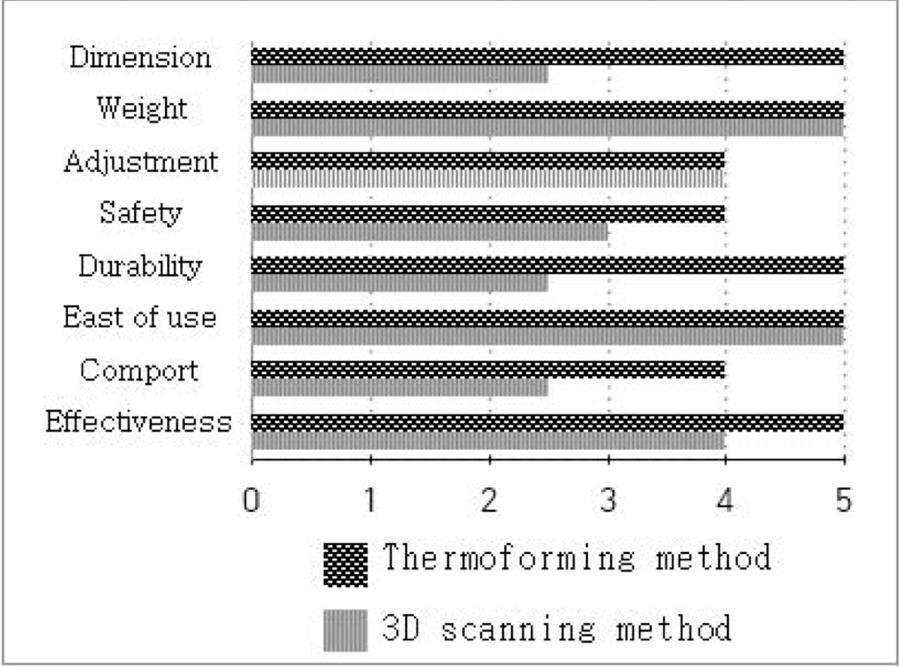

Figure 14: Production satisfaction
Service satisfaction is composed of four items, but only three items were evaluated except follow-up service items. The service delivery score of the thermoforming process method was higher than that of the 3D scanning process method, and the scores of the other two items were the same.

Manufactured time

We measured the step-by-step the times of the two ways manufacturing methods. And each step time was calculated for mean value. We did not measure the step like finishing, attach the strap, user education which are commonly included to compare pure turnaround times between the two ways manufacturing methods.

Table 2: Comparing the time of two ways manufacturing method
Thermoforming method (min) 3D Scanning method (min)
Upper limb measurement 3 3D Scanning 28
Drawing a splint design 6
3D Modeling 11 3D Modeling 17
3D Printing 185 3D Printing 484
Thermoforming 18
Total 223 Total 529

conclusion & discussion

Comparing the score of product satisfaction, the score of the thermoforming method was higher than that of the 3D scanner in the five items (Dimension, safety, durability, comfort, effectiveness). It is thought that this is the result that the cock-up splint by 3D scanning method is outputted in the form of free curve according to the shape of upper limb.

3D printing is stacked as the heating bed is lowered in the Z-axis direction, so that the wrist and forearm circumference like the free curve portion are laminated more weakly than the bottom portion supporting the wrist. So, it is considered that the durability, safety, comfort item score in 3D Scanning method lower than the thermoforming method.

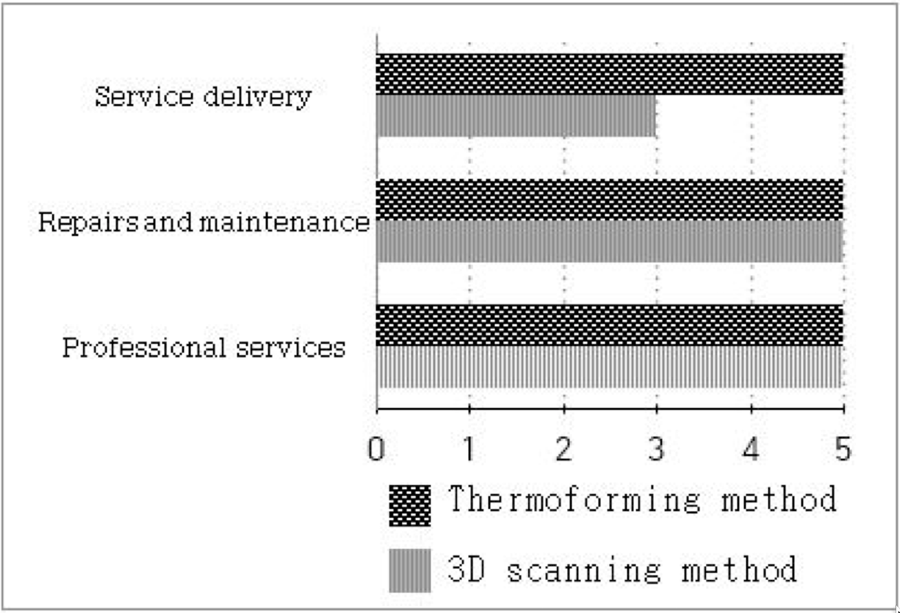

Figure 15: Service satisfaction
As a result of comparing service satisfaction scores, the 3D scanning method was evaluated to be lower than the thermoforming method in the service delivery item among the three items. Because of the lost tracking due to difficulty maintaining static posture, Therefore, the subject repeatedly shot 3D scanning. it is considered complaints have appeared.

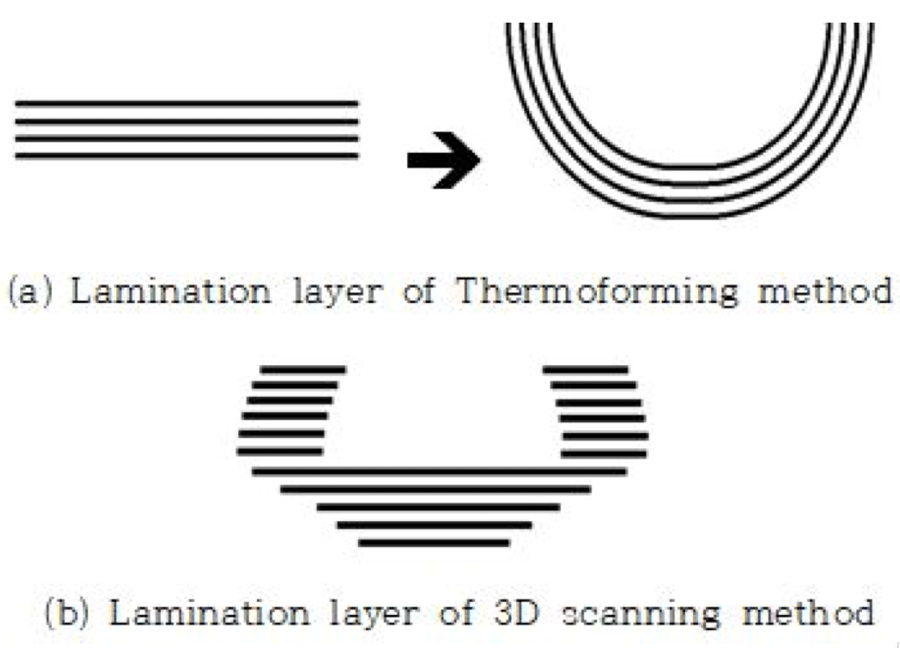

Figure 16: Comparing the lamination layer
Next, the comparing manufactured time by the two ways method. The 3D scanning method took more than two times longer than the thermoforming method. 3D modeling took a similar amount of time between the two ways method, but 3D scanning method took more time than the thermoforming method because of repeated shot the 3D scanning performed to obtain the data of the damaged upper limb. In addition, 3D printing time of the 3D scanning method was about 2.5 times longer than the thermoforming method, because the height of the cock-up splint by thermoforming method is 2.5mm, while the 3D scanning method cock-up splint The maximum height was 7.5cm, so it took a long time to laminate and more time was required as additional support for free curve like wrist and forearm circumference.

However, this study involved only two subjects, so there are limitations to the generalisation of the results. In future research is considered necessary to select large number of subject and to evaluate the clinical effectiveness. Also, the 3D scanning method should not be disparaged. However, in order to using 3D scanning method to be applied in the clinic field, it is necessary to consider how to perform 3D scanning for actual patients.
