CLINICAL EVALUATION OF THE PROTOTYPE ROBOTICBED IN AN EXPERIMENTAL ENVIRONMENT
Mio NAKAMURA1, Jun SUZURIKAWA1, Akihiro OHTA2, Yohei KUME2, Hideo KAWAKAMI2, Kaoru INOUE3, Takenobu INOUE1
1National Rehabilitation Center for Persons with Disabilities
2Panasonic Corporation
3Tokyo Metropolitan University
INTRODUCTION
In order to use assistive technologies as a means for enabling elderly and disabled persons to lead a better life, requisite assistive technologies must be developed. In addition, clinical evaluations of novel assistive technologies are required from an early stage of development.
We previously proposed a methodology for the comprehensive clinical evaluation of novel assistive technologies. This methodology consists of four steps: 1) evaluation by rehabilitation professionals; 2) evaluation by potential users in a simple setting; 3) evaluation by users in an experimental environment; and 4) evaluation by users in a real-life environment [1]. In this study, we evaluated Roboticbed based on this comprehensive methodology of clinical evaluation. In addition, we identified three types of potential users using Step 1, and the manner in which Roboticbed can be used effectively by each of these users has been confirmed using Step 2 [2].

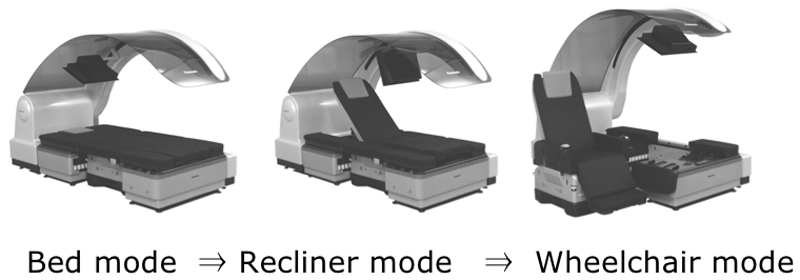

Roboticbed (developed by Panasonic Corporation) is a novel assistive technology in the development phase. As shown in Fig. 1, the main function of this bed is the provision of assistance in transferring a person with disabilities from a bed to a wheelchair, and the facilitation of easy indoor mobility [3]. It is expected that this bed will help the disabled to carry out their daily-life activities with ease and improve their quality of life. However, as Roboticbed is a novel concept in assistive technology, there are no established criteria for its clinical evaluation; furthermore, it is difficult to identify target users, set evaluation criteria, and identify the risks involved in the use of the bed, and devise means for the effective use of this technology.
The purposes of this study are to identify the problems of using Roboticbed in an experimental environment, and then to evaluate Roboticbed based on our proposed methodology for comprehensive clinical evaluations.
METHOD
Experimental conditions
We extracted two categories of participants who meet the experimental conditions based on the results of Step 1: those who seek greater autonomy; and those who frequently have to move from a bed to a wheelchair. We extracted three categories of experimental use situation in an indoor barrier-free space based on the past findings of Step2: transfer from a bed to a wheelchair, indoor mobility and conduct activities in a seated position (e.g. hand working, drink water, watching TV) by using Roboticbed [1, 2].
Method

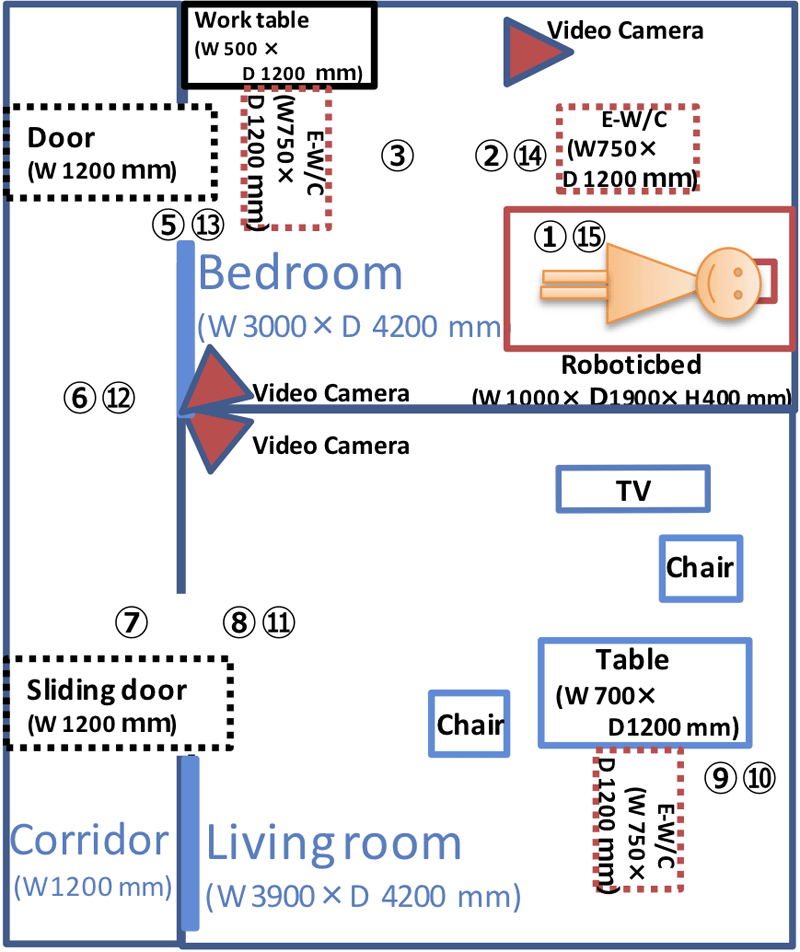

The participants were six persons with disabilities and their families/caregivers. Tables 1, 2 show the profiles of participants and their families/caregivers. This experiment involved two steps: an observation of action; and a questionnaire phase. The observed action step was performed in the experimental setup shown in Fig. 2. The actions of the participants were recorded by video cameras. In specified assignments, the participants were instructed to perform the following 15 tasks: 1) Lie down on the bed. 2) Move from the bed to the wheelchair. 3) Move to the work table. 4) Perform activity at the table. 5) Go out of the bedroom. 6) Move to the corridor. 7) Enter the living room and close the door. 8) Move to the living room table, staying clear of the chair. 9) Perform activities (drink water and watch TV.) 10) Move toward the exit. 11) Open the door. 12) Return to the corridor. 13) Enter the bedroom and return to the initial position. 14) Move from the wheelchair to the bed. 15) Lie down on the bed.
ID | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
Gender | F | M | M | M | M | M |
AGE | 61 | 20 | 63 | 73 | 62 | 45 |
Disease | rheumatoid arthritis | muscular dystrophy | inherited neuropathy | parkinsonian syndrome | cervical cord injury | cervical cord injury |
FIM (motor score:91) | 49 | 33 | 18 | 49 | 49 | 49 |
type of wheelchair | powered (add-on power unit) | powered, manual | powered | powered (add-on power unit | powered | powered |
Use of place for wheelchair | indoor, outdoor | outdoor | indoor, outdoor | indoor, outdoor | indoor, outdoor | indoor, outdoor |
Use of bed | use | non-use | use | use | use | use |
Use of lifter | non-use | non-use | use | non-use | use | use |
Living place | home | home | home | nursing home | home | home |
For the questionnaires, the Quebec User Evaluation of Satisfaction with Assistive Technology (in Japanese) (QUEST) [4], the Psychosocial Impact of Assistive Devices Scale (in Japanese) (PIADS) [5], and a subjective questionnaire on Roboticbed were used. This subjective evaluation was created based on the findings of Steps 1 and 2, and the questions consisted of 12 items with an 11-level rating system.
Analysis
ID | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
Gender | M | F | M | F | F | F |
Age | 60s | 40s | 30s | 70s | 50s | 40s |
Relationship | Husband | Mother | Caregiver | Wife | Wife | Caregiver |
An analysis of the observation of action was performed by counting the number of support, malfunction, and risk images recorded by the video cameras. The questionnaires of the score were used aggregate analysis
RESULTS
Results of the observation of action
The results of the observation of action are divided into: number of support actions, number of malfunctions, and number of risk situations, and are shown in Tables 3, 4 and 5.
Case | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
Transfer | 21 | 59 | 55 | 31 | 39 | 47 |
Posture adjustment | 9 | 52 | 43 | 28 | 35 | 38 |
Operation support | 6 | 0 | 1 | 0 | 0 | 4 |
Verbal instructions | 3 | 0 | 1 | 1 | 1 | 0 |
Others | 2 | 7 | 2 | 2 | 2 | 5 |
Mobility | 23 | 13 | 12 | 15 | 4 | 6 |
Posture adjustment | 0 | 6 | 4 | 4 | 0 | 1 |
Operation support | 2 | 1 | 0 | 1 | 0 | 0 |
Verbal instructions | 18 | 2 | 0 | 7 | 3 | 3 |
Performance support | 3 | 2 | 8 | 0 | 0 | 2 |
Others | 0 | 2 | 0 | 3 | 1 | 0 |
Total | 44 | 72 | 67 | 46 | 43 | 53 |
Case | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
Transfer | 2 | 0 | 1 | 0 | 0 | 0 |
Mobility | 26 | 10 | 9 | 16 | 26 | 36 |
Total | 28 | 10 | 10 | 16 | 26 | 36 |
Case | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
Transfer | 0 | 0 | 1 | 3 | 0 | 0 |
Mobility | 0 | 1 | 0 | 5 | 2 | 1 |
Total | 0 | 1 | 1 | 8 | 2 | 1 |
Table 3 shows the number of support actions by Roboticbed. At the time of transfer, there were many instances of support to participants in Cases 2-6. During times of mobility, Case 1 had many instances of care by verbal experienced by Roboticbed. All the participants experienced many malfunctions during mobility. These malfunctions took place at the time of joystick operation during drive mode. Table 5 shows the number of risk situations. Risk situations during mobility were collisions with the wall and desk accompanying a joystick operation error.
Questionnaire results

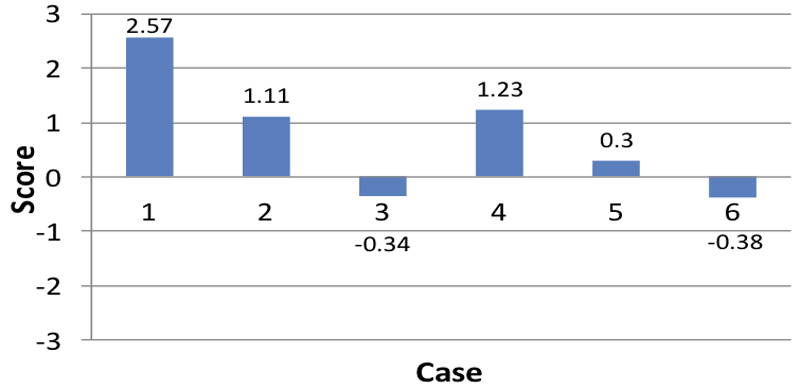

The PIADS results are shown in Fig. 3 and the QUEST results are shown in Fig. 4. The PIADS results showed that there were two groups: High PIADS score group (HP) that consists of Case1, 2 and 4 and Low PIADS score group (LP) that consists of Case3, 5 and 6. The QUEST score of participants in the HP group showed a degree of satisfaction higher. The QUEST score of participants in the LP group was lower. And, QUEST score of the LP participants were lower than that of the families or caregivers.
The subjective evaluation results for Roboticbed are shown in Tables 6, 7. Among the participants, many had a low degree of satisfaction with the joystick operation, remote control operation, and the position and qualities of the foam padding. Moreover, in terms of distortional stress of posture during reclining or performing an activity, the degree of satisfaction of many participants was low. Among the families or caregivers, the degree of satisfaction with posture support was low in the items: transfer, drive, and bed.
Items | Case | Average | |||||||
---|---|---|---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | ||||
Bed | Mattress quality | 8 | 6 | 3 | 9 | 3 | 3 | 5.3 | |
Comfort | 8 | 6 | 4 | 9 | 5 | 3 | 5.8 | ||
Distortional stress | Reclining posture | 2 | 6 | 3 | 2 | 4 | 1 | 3.0 | |
Transfer | Speed | 5 | 5 | 6 | 5 | 5 | 5 | 5.2 | |
Safety | 8 | 6 | 3 | 7 | 5 | 4 | 5.5 | ||
Distortional stress | Transfer Posture | 5 | 7 | 5 | 2 | 5 | 2 | 4.3 | |
Drivability | Easy | 3 | 8 | 4 | 7 | 2 | 4 | 4.7 | |
Safety | 5 | 7 | 4 | 7 | 5 | 3 | 5.2 | ||
Speed | 6 | 5 | 5 | 5 | 5 | 5 | 5.2 | ||
Distortional stress | Activity Posture | 3 | 6 | 2 | 10 | 5 | 1 | 4.5 | |
Interface | Joystick | Operate | 3 | 7 | 4 | 7 | 2 | 1 | 4.0 |
Position/shapes | 2 | 8 | 5 | 10 | 2 | 0 | 4.3 | ||
Remote-Controller | Operate | 2 | 5 | 4 | 10 | 4 | 0 | 4.2 | |
Position/shapes | 3 | 6 | 4 | 10 | 4 | 0 | 4.3 | ||
(score: 0= Not satisfied at all, 5 = More or less satisified, 10 = Very satisfied) |
Items | Case | Average | ||||||
---|---|---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | |||
Bed | Posture support | 4 | 4 | 5 | 10 | 3 | 2 | 4.7 |
Bedmaking | 4 | 4 | 5 | 10 | 3 | 2 | 4.7 | |
Drivability | Safety | 5 | 4 | 9 | 7 | 9 | 9 | 7.2 |
Posture support | 4 | 4 | 2 | 6 | 4 | 2 | 3.7 | |
Others | Setting of medical devices | - | - | 5 | 10 | 9 | 4 | 7.0 |
(score: 0= Not satisfied at all, 5 = More or less satisified, 10 = Very satisfied) |
DISCUSSION
Roboticbed problems
The results showed Roboticbed needed a lot of care with respect to posture adjustment at the time of transfer and mobility. Also, in the subjective evaluations of Roboticbed, the participants experienced distortional stress during transfer and mobility, and many caregivers complained about the amount of effort required for posture adjustment. Therefore, it is seen as a problem that the position at the time of transfer and mobility is not in agreement with the body.
During mobility, many participants needed a lot of operation support for joystick operation. In addition, there were many malfunctions associated with joystick operation. In the subjective evaluation results of Roboticbed, difficulty in wheelchair propulsion and joystick operation were noted. An omni wheel is used in Roboticbed rather than a rubber-tired wheel. Therefore, it can move in all directions--front and rear, right and left, obliquely, and also turn. However, unlike a standard wheelchair, joystick operation and steering of Roboticbed during movement are difficult. And the more pronounced the handicap of the user, the harder operation becomes.
High-priority requirements for Roboticbed
The participants in the LP group were using a transferring hoist for transfer from a bed to a wheelchair. In addition, these participants used powered wheelchair indoors and outdoors for mobility. Therefore, they showed the lower PIADS score because these participants have the potential requirements to use of Roboticbed outdoors.
Furthermore, the families or caregivers in the LP group showed higher degree of satisfaction for Roboticbed than the participants. Because, we think that these families and caregivers have expectation for Roboticbed to lead of participants independence and to reduce caregiver’s burden.
Validity of experiments in an experimental environment
Body posture at the time of transfer, and problems with mobility and joystick operation are problems of the highest priority. Specific problems and requirements, according to the target user's disease, characteristics, and lifestyle were also able to be identified. This study is effective in showing quantitatively during the development phase what user requirements are and what points need to be improve. These problems and requirements will become an index of clinical evaluation by users in a real-life environment.
CONCLUSION
The purpose of this study was to identify problems with Roboticbed in an experimental environment. We identified problems and high-priority requirements for Roboticbed. The results indicate that advancing clinical evaluations on the basis of real-life trials from the early development stage offer a high possibility that assistive technologies tailored to users’ needs will be put into more practical use, which will lead to a better quality of life for users.
REFERENCES
- M. Nakamura et al., Methodology for Comprehensive Clinical Evaluation of Assistive Technology: Evaluation by Rehabilitation Professionals, Everyday Technology for Independence and Care AAATE2011, IOS Press, Vol. 29, pp. 115-122, 2010
- M. Nakamura et al., Proposal for Methodology of Clinical Evaluation in Development of Assistive Technology: Identifying the Target User and Effectiveness of Use, Biomechanism symposium draft papers, pp. 201-210, 2010 (in Japanese)
- Y. Kume et al., Development of the Robotic Bed, Journal of Automotive Technology, Vol. 64, No. 5, pp. 31-34, 2010 (In Japanese)
- L. Demers, R. Weiss-Lambrou, B. Ska, Item Analysis of Quebec User Evaluation of Satisfaction with Assistive Technology (QUEST), Assistive Technology, 12(2),96- 105,2000
- T. Inoue et al., Standardization of J-PIADS (Psychosocial Impact of Assistive Devices Scale), Selected Papers from the Japanese Conference on the Advancement of Assistive and Rehabilitation Technology, IOS Press, pp. 49-54,2011
ACKNOWLEDGEMENTS
This study was supported by NEDO. We also thank the participants and their families and caregivers for giving us their kind cooperation.
