Introduction

Cardiovascular fitness is critical for all children and adults to support health and participation. For a multitude of reasons, children with cerebral palsy (CP) experience reduced physical activity levels, which ultimately affects their health and function [1]. To address this gap in physical activity, mobility aids, such as orthoses, gait trainers, or walkers can be used. These aids are especially important for children with CP in Gross Motor Functional Classification Systems (GMFCS) Levels III-V who often use these devices for daily activities.

Over the past decade, there has been increased use of exoskeletons in adult rehabilitation. However, their development, access, and associated clinical experience for pediatric populations remains largely unexplored [2]. The Trexo exoskeleton (Trexo Robotics, Mississauga ON) is one example of a mobility aid that has been recently developed to support training and activities of daily living for children with CP. The Trexo is a battery-powered exoskeleton mounted to the frame of a commonly used Rifton gait trainer that generates a stepping pattern using hip and knee actuation. The Trexo supports walking at rates of 10-70 steps/minute and can be set in two different modes: endurance and strength. The Trexo has been evaluated for in-home use and shown to improve sleep and bowel function within the first month of use [3, 4]. Currently, there have been only two studies [5, 6] examining feasibility and effects of Trexo use across a broad set of outcome measures.

Whether and how exoskeletons like the Trexo may support cardiovascular function and fitness remains unknown. Depending on the rehabilitation goal, mobility aids may be used to increase or decrease cardiovascular load. Understanding the cardiovascular load during exoskeleton use is important for optimizing utility and outcomes. Evaluating how cardiovascular loads vary with speed, mode, or other settings can be used to optimize device settings, such as to decrease load to support community participation and longer walking bouts or increase load for an intensive training session. However, the impact of mobility aids on cardiovascular load is rarely assessed, especially in children with CP. Prior studies have examined cardiovascular demands with other exoskeletons but have been limited to adults with spinal cord injuries [7].

One way to measure cardiovascular load is through heart rate (HR). HR can be measured over time as an indirect indicator of physical activity, providing a measure of the relative stress placed on the cardiopulmonary system due to physical exertion [8]. Prior research has used the heart rate reserve (HRR) based on heart rate to evaluate exercise intensity. HRR has been shown to reflect the rate of energy expenditure during physical activity [9] and has been recommended for use in estimating intensity of activities of daily living.

The purpose of this study was to quantify how heart rate changes during Trexo use in children with CP. We hypothesized that HR would: 1) increase during Trexo use, 2) be higher in Strength versus Endurance mode, and 3) increase with higher Trexo Percent Initiation, an estimate from the exoskeleton of a user’s contribution.

Methods

Participants: Four children with CP (1M/3F, age: 32 ± 8.0 months) who were GMFCS Levels III-V participated in this study. This study was approved by the University of Washington Institutional Review Board (STUDY00014877) and registered at ClinicalTrials.gov (#NCT05520359). Exclusion criteria included contraindications for weight bearing activities, orthopedic surgery of the lower extremities or neurosurgery within the last 12 months, or botulinum toxin injections of the lower extremities within the last 6 months.

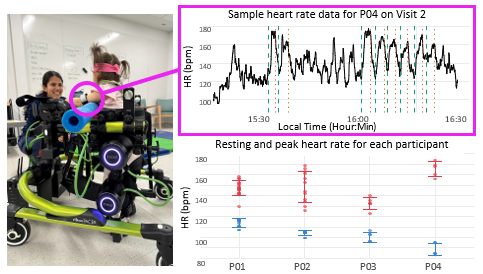

Data Collection: Participants completed up to 6 visits of walking with the Trexo (Figure 1). Each visit consisted of multiple sessions at varying speeds (steps/min), and modes (Strength or Endurance). Each session was at a fixed speed. Speed, mode, and the length of each session were determined by the researcher, physical therapist, and caregiver by monitoring the child’s comfort and engagement.

For each participant, Trexo parameters were determined at an initial enrollment visit. The Trexo leg lengths were determined by taking measurements from the participant’s hip-to-knee and knee-to-floor, respectively. The range of motion of the hip and knee joints were determined by moving each leg through its full passive range in the device. Trexo Support Force, dictating the torque applied by the hip and knee actuators, was determined by starting at the lowest level of support, and if needed, increasing until a successful stepping pattern was achieved. In Endurance mode, the Trexo provided full assistance to the user, moving the user’s legs through a defined hip-knee kinematic pattern without requiring contribution from the user. In Strength mode, the Trexo provides greater delay to await initiation of a step from the user.

Outcome Measures: Heart rate (HR) was collected throughout each visit using a Polar OH1 Optical Heart Rate Sensor (Polar Electro Oy, Kempele, Finland) at a frequency of 1 Hz. Resting Heart Rate (HR_Rest) was determined at the beginning of each visit as the lowest HR averaged over a period of 10 seconds prior to walking with the Trexo. Peak Heart Rate (HR_Peak) was the highest HR averaged over a 10 second period during each session. Age predicted Maximum Heart Rate (HR_Max) was quantified as $H{R}_{\mathrm{Max}}=208-(0.7\times \mathrm{Age})$ [10].

Heart Rate Reserve (HRR) was used to normalize HR across participants and visits. HRR is a measure derived as the difference between HR_Max and HR_Rest and is used to gauge exercise intensity [9]. Percentage of HRR (%HRR) was calculated as (HR_Peak-HR_Rest)/(HR_Max-HR_Rest)×100.

To quantify user contribution, we evaluated the Percent Initiation for each session. Percent Initiation is a metric quantified by Trexo that uses the motor hip torques to estimate the user’s contribution. Since this measure is reported for each limb, we analyzed Percent Initiation for the more-affected side, determined as the side with more muscle spasticity measured from the Modified Ashworth Scale (MAS) from the hamstrings, quadriceps, gastrocnemius, and soleus muscles.

Analysis: All analyses were conducted using R version 4.1.1 [11]. Descriptive statistics were used to summarize participant characteristics and HR_Peak with varying Trexo mode. A linear mixed effects model was used to evaluate whether HR_Peak varied with Percent Initiation. For this model, we used the lme4 package [12] with random effects for participants. Conditional R² values were calculated using the MuMIn package [13] to report the variance explained by the entire model, including fixed and random effects.

Table 1. Participant characteristics and visit summary

				Heart Rate Summary
ID	Age (mo)	Sex	Visits	Resting	Peak	HRR
P01	23	F	6	112.3 ± 3.9	147.4 ± 6.7	94.4 ± 3.9
P02	42	M	2	102.2 ± 3.9	148.5 ± 14.8	103.3 ± 3.9
P03	29	F	3	101.9 ± 5.4	132.8 ± 5.6	104.4 ± 5.4
P04	34	F	2	89.7 ± 7.5	165.5 ± 7.4	116.3 ± 7.5

Results

All participants completed 2-6 visits of walking in the Trexo (Table 1) with sessions of varying speeds (steps/min) and modes (Strength or Endurance). HR_Rest of all participants across all visits ranged from 74-115.5 bpm (97.6 ± 5.9).

Heart rate increased from baseline with Trexo use for all participants and all sessions. HR_Peak across all sessions ranged from 123.1-174.3 bpm (148.6 ± 5.7), which equated to an %HRR of 19.8-71.4%. HR_Peak was generally higher in Strength versus Endurance mode. The average HR_Peak in Strength mode ranged from 146.5-163.3 bpm (154.6 ± 8.4) versus 132.5-174.3 bpm (147.53 ± 19.7) in Endurance mode. HR_Peak was positively correlated with sessions with higher user contribution as measured by Percent Initiation (R² = 0.59, Figure 2).

Discussion

We sought to investigate whether toddlers with CP increased heart rate while using the Trexo to potentially support fitness and cardiovascular health. Three of four participants had significant increases in HR to moderate or vigorous levels of activity relative to their resting heart rate. This increase in HR was greater than other studies that have assessed the effect of mobility activities on cardiovascular load in CP. Aurich-Schuler et al. (2017) assessed HR during Lokomat use in children with neurological disorders and reported a trend of increasing HR with less Lokomat assistance, but did not report HR relative to resting rates [14]. To mimic activities of daily living, Israeli-Mendlovic et al. (2014) measured HR among children with CP GMFCS IV-V (6 to 12 years) while performing Gross Motor Functional Measure (GMFM) assessments. Participants performed their most challenging skill achieved from the GMFM for 2 minutes with an average heart rate of 127.3 ± 21.9 [15].

The resting heart rates of the children in this study (97.6 ± 5.9) were similar to those prior literature for children with CP, which report resting rates of 93.9 ± 17.1 (GMFCS I and II) and 100.7 ± 10.2 bpm (GMFCS IV and V) [15, 16]. Limited research has investigated heart rates for children or adults with CP in GMFCS Levels IV and V. Given the prevalence of cardiovascular disorders in this population, understanding whether or how daily activities and assistive technology can support fitness and cardiovascular health are important areas for future research.

We found that HR_Peak generally increased in Strength versus Endurance mode. Endurance mode was designed to support walking practice by moving the limbs through a defined kinematic pattern. Strength mode was designed to increase difficulty by encouraging the user to produce torque at the hip to initiate a step. This is similar to the findings of Aurich-Schuler et al. (2017) using the Lokomat, where they observed a trend that heart rate increased with increased difficulty across modes, although these results were not statistically significant [14].

We did not find significant associations in HR_Peak with speed. This could be attributed to the fixed range of speeds available on the Trexo (10-70 steps/min) and our small number of participants who could complete sessions at multiple speeds in both modes.

This preliminary study demonstrated that the Trexo may support elevated HR for fitness or cardiovascular training among young children with CP in GMFCS Levels IV-V. Limitations of this study include the limited sample size and number of trials at each speed and mode. Further, the estimates of age-adjusted maximum HR for calculating HRR may overestimate HRR for young children, suggesting exercise intensity may be even higher for these children. Future research that evaluates the generalizability of these findings and compares HR of young children with CP across activities of daily living and different rehabilitation protocols are critical to understand and support long-term cardiovascular health and fitness in this population.
